OptoDist L1: optical distance sensor
Product Overview

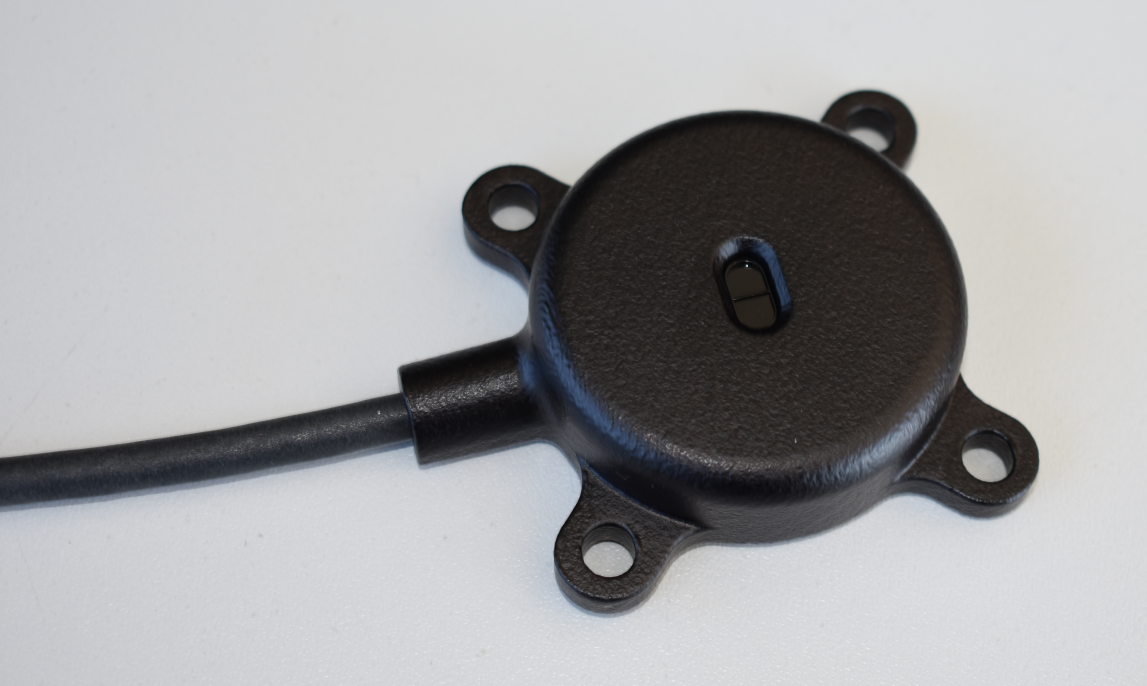

The OptoDist L1 is a close-up range ToF (time of flight) laser distance sensor with high sampling rate.
The OptoDist L1 is for industrial distance measurement, the distance range is from 30mm up to 1300mm.
The distance measurement is precise with mm accuracy.
OptoDist L1 Data Sheet
OptoDist L1 data sheet here and further details on request.
Benefits/Use
OptoDist L1 applications & benefits
- Industrial distance measurement, distance range from 30 mm up to 1300 mm.
- For indoor applications.
- Liquids level measurement e.g. in IBCs.
- Precise distance with mm accuracy.
- Update rate up to 50 Hz.
- Wide range power supply.
- VCSEL: vertical cavitiy surface emitting laser with TOF Time of Flight Sensor
Technical Data
Technical data
|
Optical system |
VCSEL: vertical cavitiy surface emitting laser with TOF Time of Flight Sensor |
| Power supply | 9 to 28 V DC |
| Current consumption | typ. 40 mA @ 12V DC < 500mW |
|
Laser emitter wavelength and safety |
940nm laser class 1 equal to IEC 60825-1:2014 |
| Update rate |
50 Hz |
| Distance range |
30mm to 1300mm, depends on the application |
| System accuracy |
+/-2mm, depends on the application |
| Operating Temperature | -20 °C up to +70 °C |
| Storage Temperature | -40 °C up to +85 °C |
| Output Signal | proportional to distance 4 to 20 mA and serial RS-232 |
| Environmental protection | IP53 (dust and splash water) |
| Casing | fully encapsulated |
